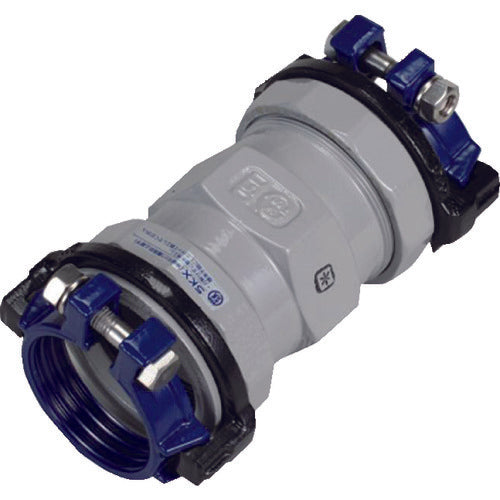

SK Kawanishi PVC pipe fitting SKX socket V50 SKX-S-V50 1 piece

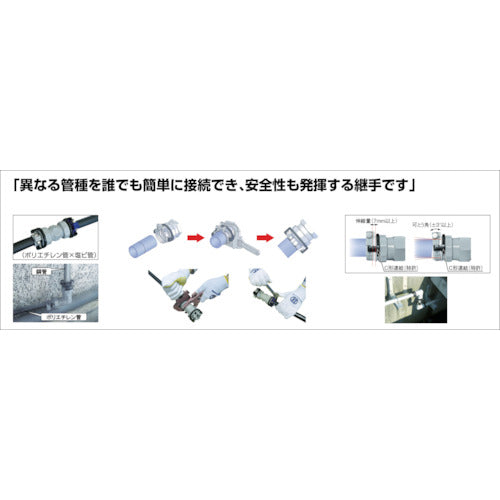

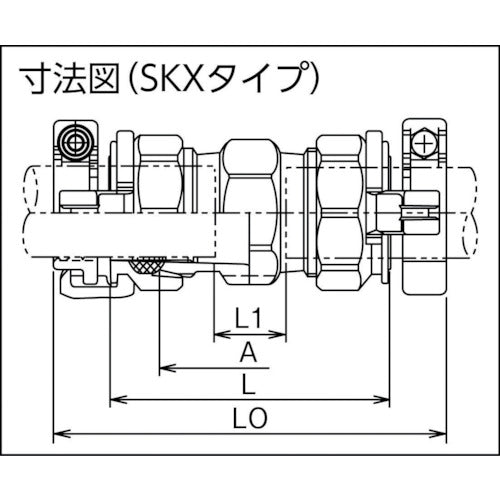

Catalog number: SKX-S-V50 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Flexible and expandable, absorbing external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●Easy to remove and reinstall, also suitable for temporary piping. ●No need to chamfer pipes or apply adhesive to connect. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 50 ●L (mm): 139 ●L1 (mm): 38 ●A (mm): 102 ●L0 (mm): 188 ●Maximum L1 (mm): 38 ●Minimum L1 (mm): 10 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0-45 ●Nominal diameter: V50 ●Operating temperature: 0-45℃ ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
