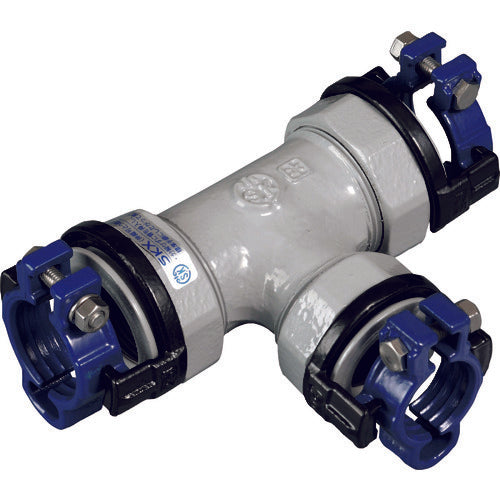

SK Kawanishi PVC pipe fitting SKX nut tee V30 x V30 SKX-NT-V30XV30 1 piece

Catalog number: SKX-NT-V30XV30 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide over the pipe, making it ideal for repair and restoration work. ●Flexible and expandable, it can absorb external forces. ●Easy to remove and reinstall, and also suitable as a repair material. ●Can be connected without chamfering the pipe or applying adhesive. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 30 x 30 ●L (mm): 166 ●L1 (mm): 90 ●Nominal diameter: V30 x V30 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 135 ●L0 (mm): 210 ●L1 (mm) minimum: 38 ●B (mm): 68 ●l0 (mm): 106 ●l (mm): 84 ●l1 (mm): 46 ●l2 (mm): 25 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
