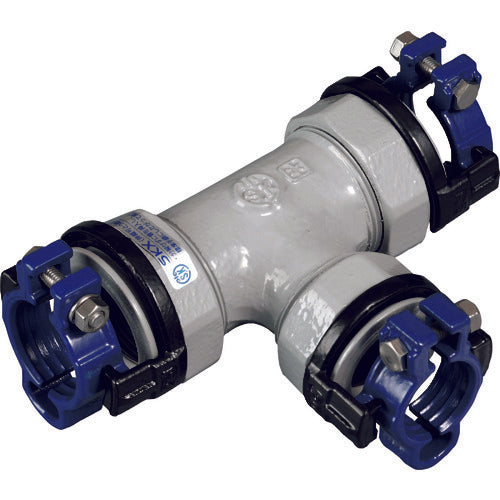

SK Kawanishi PVC pipe fitting SKX nut tee V40 x V40 SKX-NT-V40XV40 1 piece

Catalog number: SKX-NT-V40XV40 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide over the pipe, making it ideal for repair and restoration work. ●Flexible and expandable, it can absorb external forces. ●Easy to remove and reinstall, and also suitable as a repair material. ●Can be connected without chamfering the pipe or applying adhesive. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 40 x 40 ●L (mm): 185 ●L1 (mm): 104 ●Nominal diameter: V40 x V40 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 150 ●L0 (mm): 234 ●L1 (mm) minimum: 48 ●B (mm): 75 ●l0 (mm): 117 ●l (mm): 93 ●l1 (mm): 52 ●l2 (mm): 31 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
