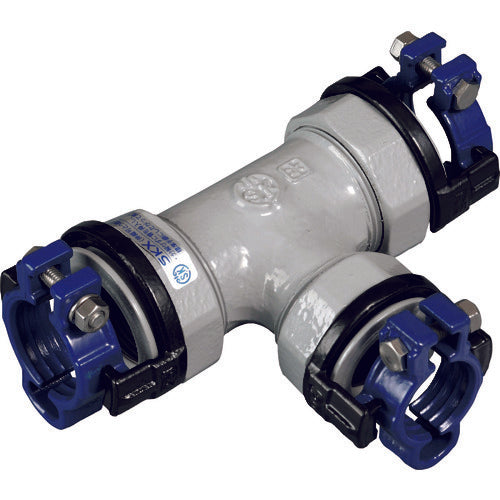

SK Kawanishi PVC pipe fitting SKX nut tee V50 x V50 SKX-NT-V50XV50 1 piece
SK Kawanishi PVC pipe fitting SKX nut tee V50 x V50 SKX-NT-V50XV50 1 piece
Regular price
¥12,073
Regular price
Sale price
¥12,073
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalog number: SKX-NT-V50XV50 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide over the pipe, making it ideal for repair and restoration work. ●Flexible and expandable, it can absorb external forces. ●Easy to remove and reinstall, and also suitable as a repair material. ●Can be connected without chamfering the pipe or applying adhesive. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 50 x 50 ●L (mm): 197 ●L1 (mm): 96 ●Nominal diameter: V50 x V50 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 160 ●L0 (mm): 246 ●L1 (mm) minimum: 60 ●B (mm): 78 ●l0 (mm): 121 ●l (mm): 97 ●l1 (mm): 46 ●l2 (mm): 32 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
