SK Kawanishi PVC Pipe Fitting SKX Pipe End V20 SKX-END-V20 1 pc

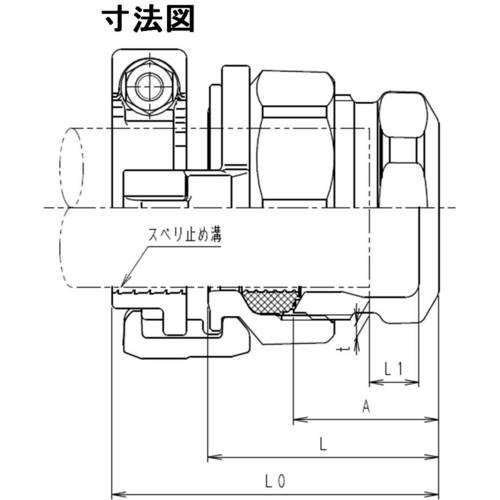

Catalog number: SKX-END-V20 Features: ●Easy and quick pipe connection. ●No need to disassemble, just insert the pipe and tighten to connect. ●Flexible and expandable, absorbing external forces. ●Easy to remove and reinstall, also suitable as a repair material. ●Comes with anti-detachment fittings to prevent the pipe from coming loose. ●Suitable for temporary water stoppage and as a plug for discontinued pipes. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 20 ●L (mm): 46 ●L1 (mm): 8 ●Nominal diameter: V20 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 33 ●L0 (mm): 67 ●Operating temperature: 0 to 45℃ ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
