SK Kawanishi PVC pipe fitting SKX pipe end (with plug) V50 SKX-END-P-V50 1 piece

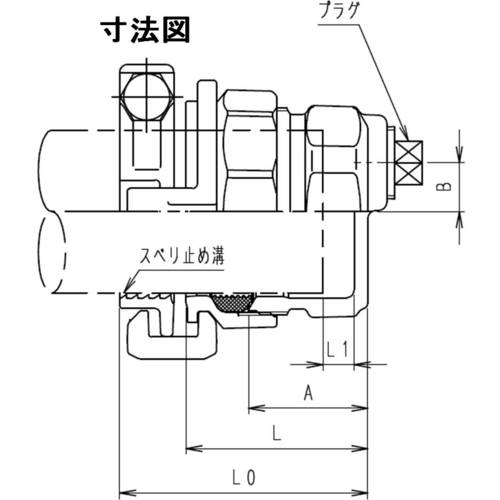

Catalog number: SKX-END-P-V50 Features: ●No need to disassemble, just insert the pipe and tighten to connect. ●Equipped with a metal fitting to prevent the pipe from coming loose. ●Suitable for temporary water stoppage and as a plug for discontinued pipes. ●Easy to remove and reinstall. ●Comes with a 20A plug that can be removed. Suitable as a water pressure test jig. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 50 ●L (mm): 63 ●L1 (mm): 7 ●Nominal diameter: V50 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 44 ●L0 (mm): 87 ●Thread size: 3/4 ●Operating temperature: 0 to 45℃ ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
