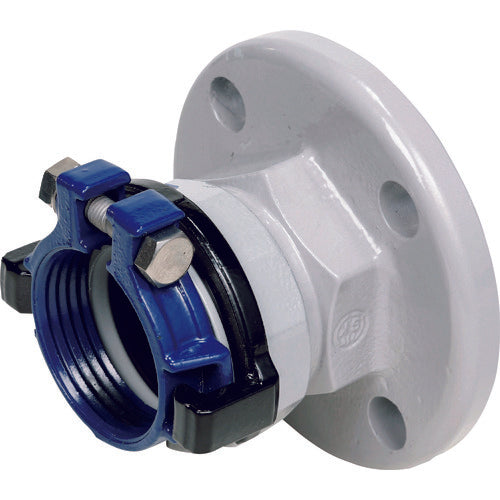

SK Kawanishi PVC pipe fitting SKX flange socket (10KF) V50 SKXFSJIS10KV50 1 piece

Catalog number: SKXFSJIS10KV50 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Slidable on the pipe, ideal for repair and maintenance work. ●Flexible and expandable, absorbing external forces. ●Easy to remove and reinstall, also suitable for temporary piping. ●No need to chamfer the pipe or apply adhesive to connect. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 50 ●L (mm): 84 ●L1 (mm): 33 ●L2 (mm): 16 ●Nominal diameter: V50 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 65 ●L0 (mm): 108 ●d2 (mm): 50 ●Flange: JIS10 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
