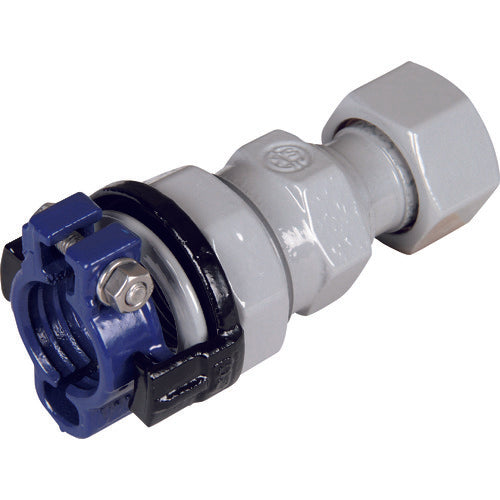

SK Kawanishi PVC pipe fitting SKX meter V20 x 20 SKX-M-V20X20 1 piece

Catalog number: SKX-M-V20X20 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide on the pipe, making it ideal for repair and restoration work. ●Flexible and expandable, can absorb external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●Can be connected without chamfering the pipe or applying adhesive. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 20 x 20 ●L (mm): 77 ●L1 (mm): 43 ●Nominal diameter: V20 x V20 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 65 ●d (mm): 19 ●L0 (mm): 98 ●Thread size: 1 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
