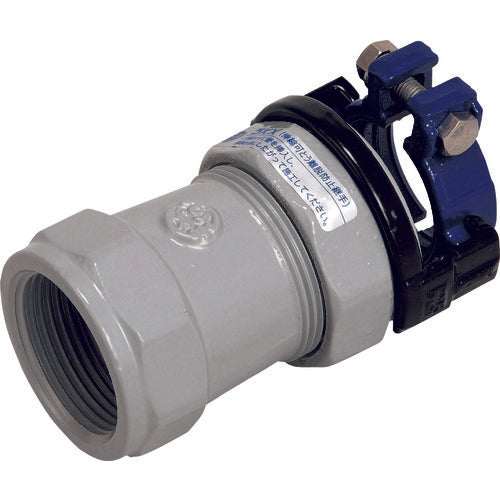

SK Kawanishi PVC pipe fitting SKX-BS-V20 socket for water stop valve V20 SKX-BS-V20 1 piece

Catalog number: SKX-BS-V20 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide on the pipe, making it ideal for repair and restoration work. ●Flexible and expandable, it can absorb external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●Can be connected without chamfering the pipe or applying adhesive. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 20 ●L (mm): 70 ●L1 (mm): 36 ●L2 (mm): 22 ●Nominal diameter: V20 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 57 ●d (mm): 20 ●L0 (mm): 91 ●L3 (mm): 15.5 ●Thread size: 1 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
