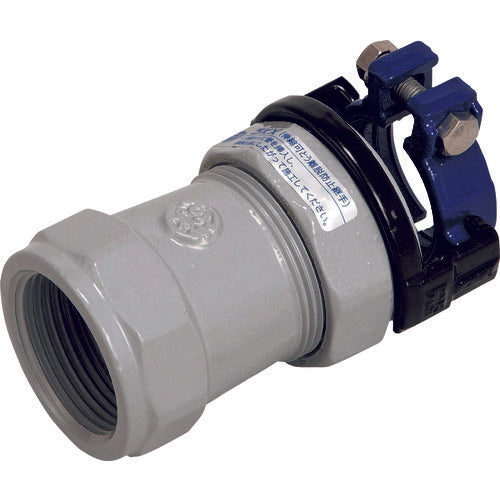

SK Kawanishi PVC pipe fitting SKX-BS-V30 socket for water stop valve 1 piece

Catalog number: SKX-BS-V30 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Slidable on the pipe, ideal for repair and maintenance work. ●Flexible and expandable, can absorb external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●No need to chamfer the pipe or apply adhesive to connect. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 30 ●L (mm): 83 ●L1 (mm): 45 ●L2 (mm): 25 ●Nominal diameter: V30 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 67 ●d (mm): 31 ●L0 (mm): 105 ●L3 (mm): 17.0 ●Thread size: 1 1/2 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
