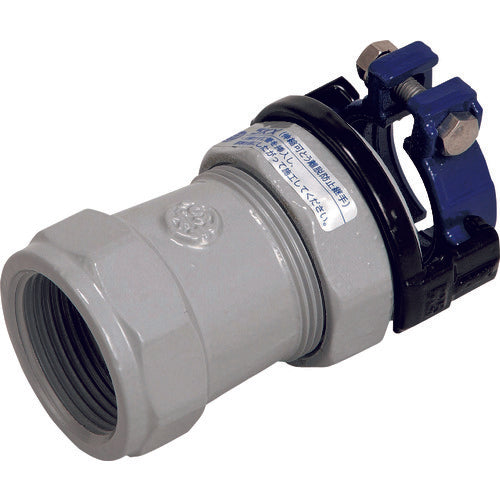

SK Kawanishi PVC pipe fitting SKX-BS-V40 socket for water stop valve 1 piece

Catalog number: SKX-BS-V40 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Slidable on the pipe, ideal for repair and maintenance work. ●Flexible and expandable, can absorb external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●No need to chamfer the pipe or apply adhesive to connect. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 40 ●L (mm): 94 ●L1 (mm): 53 ●L2 (mm): 29 ●Nominal diameter: V40 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 76 ●d (mm): 40 ●L0 (mm): 118 ●L3 (mm): 22.0 ●Thread size: 2 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
