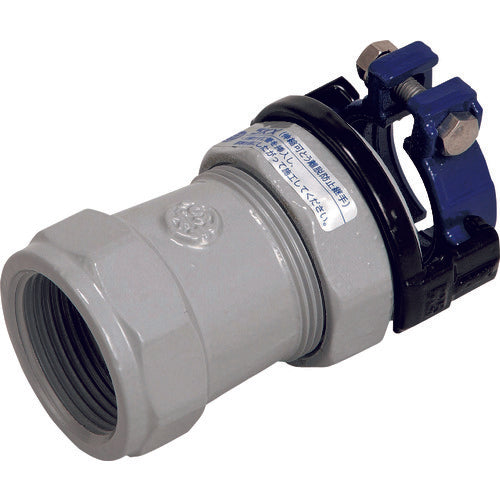

SK Kawanishi PVC pipe fitting SKX-BS-V50 socket for water stop valve 1 piece

Catalog number: SKX-BS-V50 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Slidable on the pipe, ideal for repair and maintenance work. ●Flexible and expandable, can absorb external forces. ●Easy to remove and reinstall, also suitable for repair materials. ●No need to chamfer the pipe or apply adhesive to connect. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 50 ●L (mm): 105 ●L1 (mm): 54 ●L2 (mm): 33 ●Nominal diameter: V50 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 86 ●d (mm): 52 ●L0 (mm): 129 ●L3 (mm): 24.0 ●Thread size: 2 1/2 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
