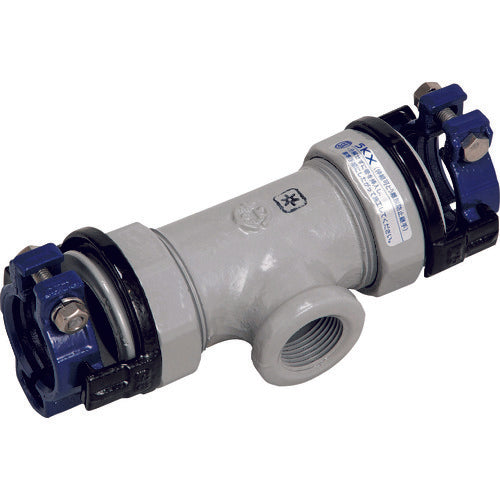

SK Kawanishi PVC pipe fitting SKX branch female threaded tee V20 x 20A SKXMTV20X20 1 piece

Catalogue number: SKXMTV20X20 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide over the pipe, making it ideal for repair and maintenance work. ●Flexible and expandable, it can absorb external forces. ●Easy to remove and reinstall, also suitable for temporary piping. ●Can be connected without chamfering the pipe or applying adhesive. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 20 x 20 ●L (mm): 105 ●L1 (mm): 37 ●Nominal diameter: V20 x 20A ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 80 ●L0 (mm): 147 ●L1 (mm) minimum: 36 ●B (mm): 27 ●Thread size: 3/4 ●Operating pressure: 1MPa ●For PVC pipes ●Operating temperature: 0 to 45℃ Material/Finish: ●Vermicular cast iron
