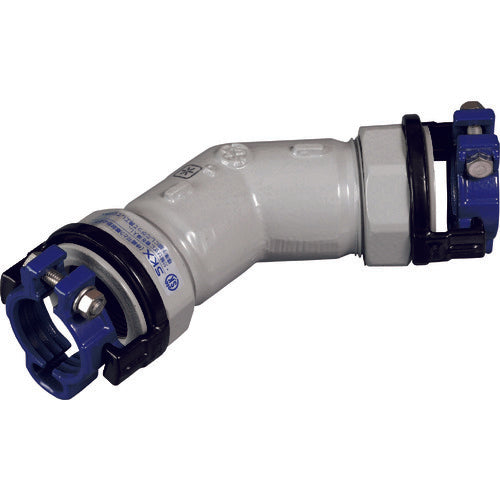

SK Kawanishi PVC pipe fitting SKX45° elbow V50 SKX-45L-V50 1 piece

Catalog number: SKX-45L-V50 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Can slide over the pipe, making it ideal for repair and restoration work. ●Flexible and expandable, it can absorb external forces. ●Easy to remove and reinstall, also suitable for use as a repair material. ●Can be connected without chamfering the pipe or applying adhesive. Applications: ●For water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 50 ●L (mm): 108 ●L1 (mm): 57 ●L2 (mm): 13 ●Nominal diameter: V50 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●A (mm): 89 ●L0 (mm): 132 ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
