SK Kawanishi PVC pipe x steel pipe dissimilar pipe joint SKX socket V20 x 20 SKX-S-V20X20 1 piece

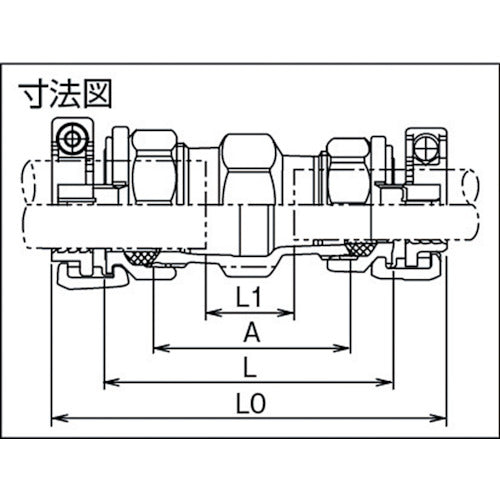

Catalog number: SKX-S-V20X20 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Easy installation to connect different types of pipes. ●Comes with anti-detachment fittings to prevent the pipe from coming loose. ●Has elasticity and can absorb external forces. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 20 x 20 ●L (mm): 89 ●L1 (mm): 21 ●A (mm): 64 ●L0 (mm): 131 ●Maximum L1 (mm): 21 ●Minimum L1 (mm): 10 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●Nominal diameter: V20 x 20 ●Operating temperature: 0 to 45℃ ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
