SK Kawanishi PVC pipe x steel pipe dissimilar pipe joint SKX socket V25 x 25 SKX-S-V25X25 1 piece

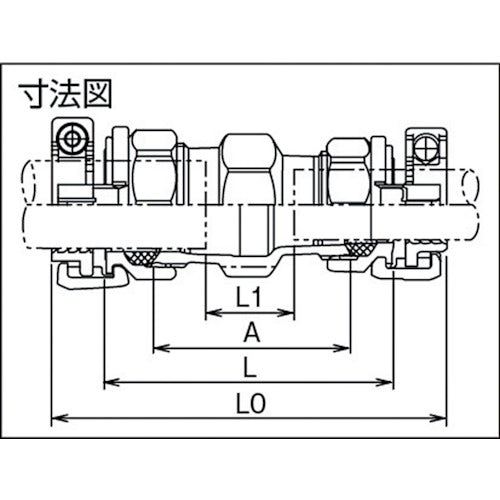

Catalog number: SKX-S-V25X25 Features: ●No disassembly required, simply insert the pipe and tighten to connect. ●Easy installation to connect different types of pipes. ●Comes with anti-detachment fittings to prevent the pipe from coming loose. ●Flexible and expandable to absorb external forces. Applications: ●Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ●Nominal diameter (mm): 25 x 25 ●L (mm): 95 ●L1 (mm): 26 ●A (mm): 66 ●L0 (mm): 136 ●Maximum L1 (mm): 26 ●Minimum L1 (mm): 10 ●Maximum operating pressure (MPa): 1 ●Operating temperature range (℃): 0 to 45 ●Nominal diameter: V25 x 25 ●Operating temperature: 0 to 45℃ ●Operating pressure: 1MPa Material/Finish: ●Vermicular cast iron
