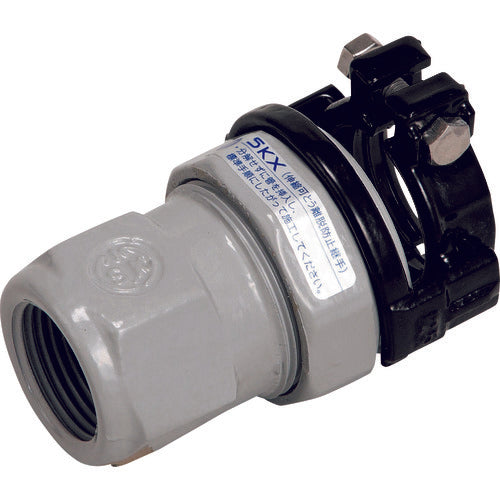

SK Kawanishi Steel Pipe Fitting SKX Female Threaded Socket 50 SKX-MS-50 1 pc

Catalog number: SKX-MS-50 Features: ● Pipes can be connected quickly and easily. ● Installation is completed by simply inserting the pipe and tightening it. ● Flexible and expandable, it can absorb external forces. ● It can be easily removed and reinstalled, and is also suitable as a repair material. ● No need to chamfer the pipe or apply adhesive to connect. Applications: ● Water supply piping, drainage piping, seawater piping, air piping, etc. Specifications: ● Nominal diameter (mm): 50 ● L (mm): 99 ● L1 (mm): 48 ● A (mm): 80 ● L0 (mm): 123 ● Maximum operating pressure (MPa): 1 ● Operating temperature range (℃): 0 to 45 ● Nominal diameter: 50 ● B (mm): 25 ● Female thread size: 2 ● Operating pressure: 1MPa ● For steel pipes ● Operating temperature: 0 to 45℃ Material/Finish: ● Vermicular cast iron
