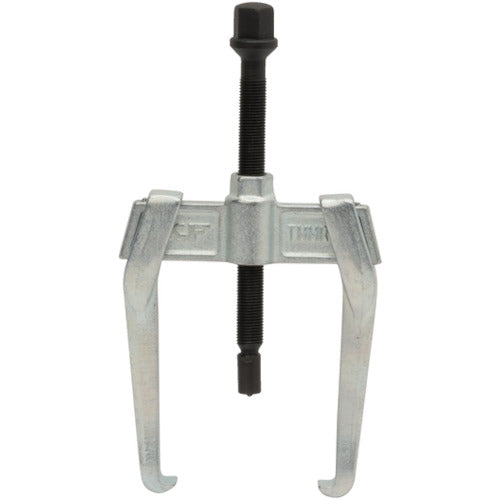

SKF Reversible Jaw Puller TMMR 40F TMMR 40F 1 piece

Catalogue number: TMMR 40F Features: ●Multipurpose reversible jaw puller. ●The multipurpose SKF reversible jaw pullers TMMR series are designed for pulling inner and outer bearing rings as well as other components such as gears and pulleys. ●The two arms of the puller can be mounted with the jaws facing inwards or outwards, making it a versatile and essential tool for machine shops. Applications: ●For pulling inner and outer bearing rings. ●For pulling components such as gears and pulleys. Specifications: ● Reach of jaws (mm): 67 ● Thickness of jaw tip (mm): 4 ● Compatible bearing outer diameter for pulling (mm): 23-48 ● Compatible bearing inner diameter for pulling (mm): 59-67 ● Set contents (pieces): 1 ● Push screw hex size (mm): 13 ● Guaranteed load (kN): 17^ ● Self-locking arms for easy grip width adjustment ● An essential multi-purpose tool for repair shops for pulling inner and outer rings ● Zinc passivated arms and beams for increased corrosion resistance and easy cleaning ● No permanent deformation of the puller arms even when using maximum pulling force ● Optional accessories expand the versatility of the puller ● Maximum push screw torque (Nm): 22
