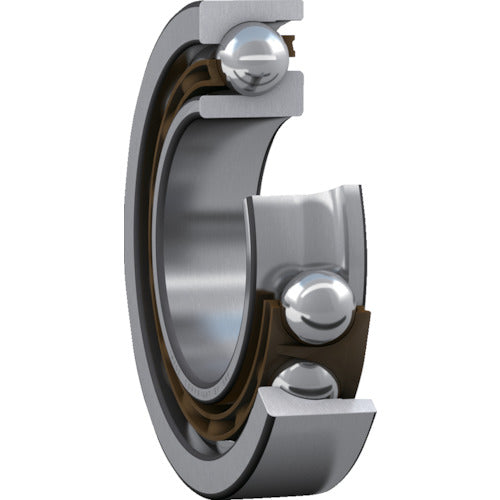

SKF Single row angular contact ball bearing, inner diameter 20mm x outer diameter 52mm x width 15mm, 7304 BECBP, 1 piece

Catalogue number: 7304 BECBP Features: ● Single-row angular contact ball bearings can carry radial loads and unidirectional axial loads. Usually, two bearings are matched or combined. ● Universal match bearings are designed to be freely combined, and when mounted side by side, the specified internal clearance, preload, and uniform load distribution can be obtained between the bearings without the use of shims or adjusted spacers. ● Explorer bearings are high-precision and high-performance bearings. Specifications: ● Inner ring diameter (mm): 20 ● Outer ring diameter (mm): 52 ● Width (mm): 15 ● Operating temperature range (℃): -40 to +120 (when lubricant does not contain EP additive) ● Accuracy grade: ISO 492 dimensional accuracy grade P6, rotational accuracy grade P5 ● Contact angle 40° ● Glass fiber reinforced polyamide 6,6 cage Material/Finish: ● High carbon chromium bearing steel
