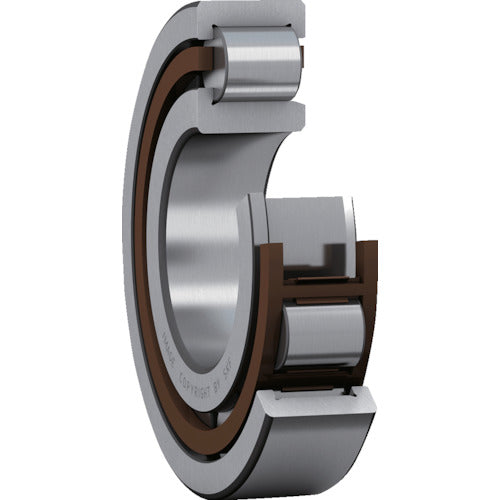

SKF Single Row Cylindrical Roller Bearing NJ Type C3 Clearance (Large Clearance) Inner Diameter 30mm x Outer Diameter 62mm x Width 16mm NJ 206 ECJ/C3 1 pc

Catalogue number: NJ 206 ECJ/C3 Features: ● Explorer specification models have the following improved performance through the optimization of precision and internal shape, and the adoption of special heat treatment. ● Improved dynamic load capacity: Reduces the effects of misalignment. ● Reduced frictional heat: Significantly extends the practical life of the bearing. ● This bearing is used to fix the shaft in one axial direction. Specifications: ● Inner ring diameter (mm): 30 ● Outer ring diameter (mm): 62 ● Width (mm): 16 ● Operating temperature range (℃): -40 to +150 ● Precision grade: ISO 492 dimensional precision normal tolerance, rotational precision P6 grade ● NJ type ● C3 clearance (large clearance) ● Pressed steel cage ● Inner ring has flange on one side, outer ring has flanges on both sides Material/Finish: ● High carbon chromium bearing steel
