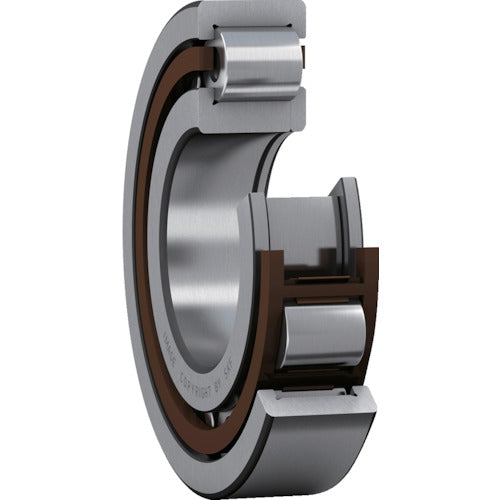

SKF Single Row Cylindrical Roller Bearing NUP Type Inner Diameter 70mm x Outer Diameter 150mm x Width 51mm NUP 2314 ECP 1 pc

Catalogue number: NUP 2314 ECP Features: ● Explorer specification models have the following improved performance due to the optimization of precision and internal shape, and the adoption of special heat treatment. ● Improved dynamic load capacity: Reduces the effects of misalignment. ● Improved wear resistance: Reduces noise and vibration levels. ● Reduced frictional heat: Significantly extends the bearing's service life. ● This bearing is used to fix the shaft in both axial directions. Specifications: ● Inner ring diameter (mm): 70 ● Outer ring diameter (mm): 150 ● Width (mm): 51 ● Operating temperature range (℃): -40 to +120 (when lubricant does not contain EP additive) ● Precision grade: ISO 492 dimensional precision normal tolerance, rotational precision P6 grade ● NUP type ● Glass fiber reinforced polyamide 6, 6 cage ● Inner ring with flange and flange ring on one side, outer ring with flanges on both sides Material / Finish: ● High carbon chromium bearing steel
