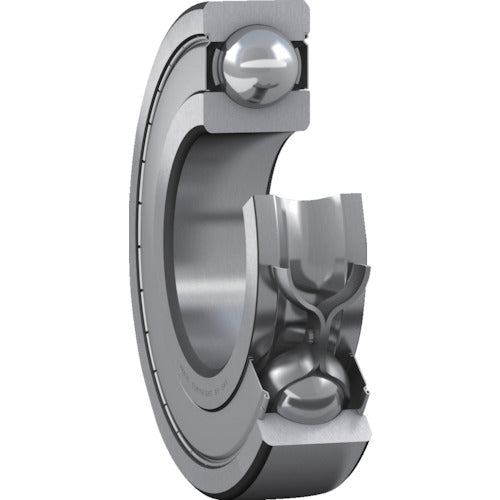

SKF Single-row deep groove ball bearing, steel plate shield on both ends, C3 clearance (large clearance), inner diameter 40 mm x outer diameter 90 mm x width 23 mm, 6308-2Z/C3, 1 piece

Catalog number: 6308-2Z/C3 Features: ●Deep groove ball bearings are versatile bearings, particularly suited to high and very high speeds. ●The Explorer model has the following improved performance through the optimization of precision and internal shape, and the adoption of special heat treatment. ●Improves dynamic load capacity. ●Reduces noise and vibration levels. ●Reduces frictional heat, significantly extending the practical life of the bearing. ●Metal shield improves dust resistance. Specifications: ●Inner ring diameter (mm): 40 ●Outer ring diameter (mm): 90 ●Width (mm): 23 ●Operating temperature range (℃): -30 to 120 ●Accuracy grade: ISO 492 Dimensional precision Inner and outer diameter P6 grade, width tolerance 0/-60μm, rotational precision P6 grade ●Steel plate shield on both ends of bearing ●C3 clearance (large clearance) Material/Finish: ●High carbon chromium bearing steel
