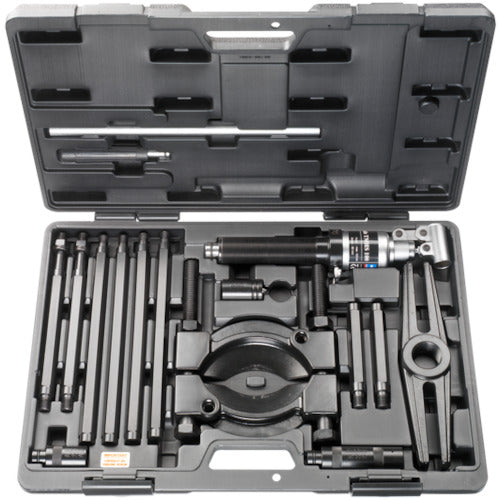

SKF Heavy Duty Back Puller TMBS 150E TMBS 150E 1 piece

Catalogue number: TMBS 150E Features: ● A puller that pulls out bearings by attaching a separator to the back of the bearing. ● The SKF TMBS Heavy Duty Back Puller simplifies bearing removal work in applications where the space behind the bearing is narrow and conventional jaw pullers are limited, or where a long reach is required. ● A special separator design is used that can be easily inserted between the bearing and the shaft shoulder. Applications: ● For easy removal of bearings and parts. ● Especially for large diameter shafts. Specifications: ● Reach of jaws (mm): 120-816 ● Jaw tip thickness (mm): 12 (maximum) ● Compatible bearing outer diameter (mm): up to 215 ● Compatible bearing inner diameter (mm): 35-150 ● Set contents (pieces): 14 ● Push screw hex size (mm): handle type ● Guaranteed load (kN): 100^ ● Separator can be easily placed between the bearing and shaft shoulder ● Particularly suitable for large diameter shafts ● The spring-loaded center point of the spindle makes it easy to center the puller, minimizing the risk of shaft damage ● Hydraulic spindle with safety valve for safe and easy removal work ● Firmly grips the back of the bearing inner ring, reducing the force required to remove the bearing ● Two hydraulic spindle extension parts and an extension rod allow for quick adaptation to the required pulling length up to 816 mm ● Rear puller type ● Hydraulic ● Piston stroke (mm): 80 Set contents/accessories: ●Separator set, 2 main rods, 2 125mm extension rods, 4 285mm extension rods, beam, hydraulic spindle TMHS 100, 2 hydraulic spindle extension parts (50mm, 100mm), nose piece with center point
