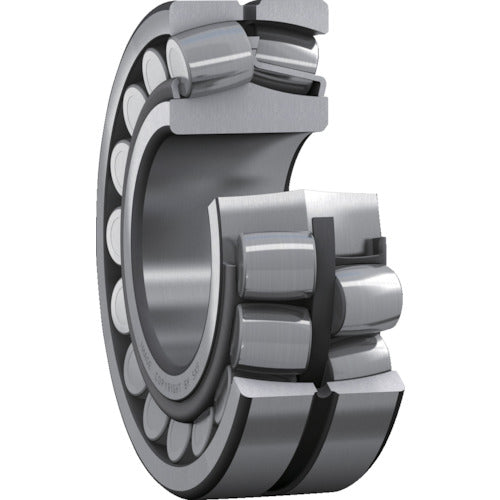

SKF spherical roller bearing C3 clearance (large clearance) Inner diameter 40mm x Outer diameter 90mm x Width 23mm 21308 E/C3 1 piece

Catalog number: 21308 E/C3 Features: * The spherical roller bearing is a self-aligning type, and is less susceptible to shaft misalignment caused by shaft deflection, etc. * Special 200°C heat-resistant bainite material is used as standard, which has excellent wear resistance, material crack resistance, and fatigue resistance. * Explorer specification model numbers have the following improved performance. * Compared to conventional design bearings, it has improved dynamic load capacity, improved wear resistance, reduced noise and vibration levels, and reduced frictional heat, resulting in a significant extension of the bearing's practical lifespan. Specifications: ● Inner ring diameter (mm): 40 ● Outer ring diameter (mm): 90 ● Width (mm): 23 ● Operating temperature range (℃): -40 to +200 ● Precision grade: ISO 492 dimensional precision, width tolerance less than half of the ISO standard, rotational precision P5 grade ● C3 clearance (large clearance) ● Two-part window type stamped steel cage ● Flangeless inner ring ● Inner ring guide type guide ring ● Optimized internal design to increase load capacity ● Oil groove and three oil holes on outer ring Material/Finish: ● High carbon chromium bearing steel
