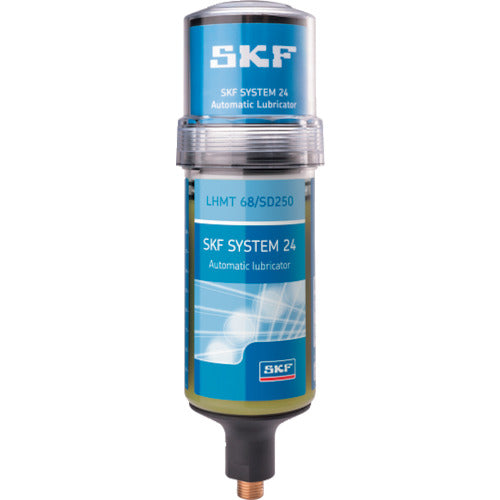

SKF SYSTEM 24 Electric automatic lubrication device TLSD 250/HMT68 TLSD 250/HMT68 1 unit

Catalogue number: TLSD 250/HMT68 Features: ●TLSD series is an electric single point automatic lubricator. ●Because it is electric, it discharges lubricant with stable pressure. ●It has the advantages of improving employee safety, increasing machine reliability, and optimizing maintenance work. Application: ●Chain Specifications: ●Height (mm): 237 ●Width (mm): 71 ●Oil discharge period: Select from 1, 2, 3, 4, 6, 8, 9, 10, and 12 months ●Oil capacity (cc): 250 ●Oil supply point: 1 ●Type: Electric ●Mounting screw size: G 1/4 ●Normal pressure (MPa): 0.3 ●Maximum pressure (MPa): 0.3 ●Protection class: IP 65 ●Power supply voltage: Dedicated battery pack (TLSD 1-BAT, or TLSD 1-BATC for low temperatures) ●Product name: LHMT 68. Chain oil for medium temperatures● Maximum supply length (mm): 5000● Discharge volume adjustment that can be set for periods from 1 to 12 months● Maximum discharge pressure of 5 bar is maintained throughout the lubrication period● Red, yellow and green LEDs for visual confirmation of the lubricator status● Small size allows installation in restricted areas● Support flange included for added robustness● Suitable for direct and remote installation● Lubricant type: LHMT 68. Chain oil● Replacement refills: LHMT 68/SD125, LHMT 68/SD250● LED status indication: Green LED (every 30 seconds): OK, Yellow LED (every 30 seconds): Low battery, Yellow LED (every 5 seconds): High back pressure warning, Red LED (every 5 seconds): Warning Stop with error, Red LED (every 2 seconds): Warning Cartridge empty
