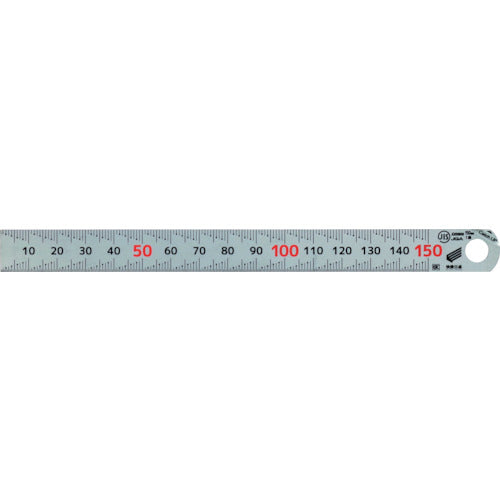

SK Catch-up scale, quick scale, FINE, 15cm, 150mm, CU-15KDF, 1 piece

Catalog number: CU-15KDF Features: ● Step-like scale with continuous numeral display and 2 mm dots reduces misreading of numbers and allows instant understanding of numbers. ● Uses a 0.5 mm pitch scale, making it suitable for more detailed work. ● The tip is bent to make it easier to grip. ● Made of rust-resistant stainless steel. ● The numbers are displayed large and clearly, making them easy to read. ● The scale surface has a silver finish that makes the graduations visible. Applications: ● For dimension measurement, drawing lines, and marking work. Specifications: ●Width (mm): 15 ●Measurement range (mm): 0-150 ●Length tolerance (mm): ±0.15 ●Scale type: Upper and lower cm graduations ●Scale pitch (mm): Upper 1, lower 0.5 ●Thickness (mm): 0.5 ●Total length (mm): 175 ●Measurement range (mm): 0-150 ●Length tolerance (mm): ±0.15 ●Scale type: Upper and lower cm graduations ●Scale pitch (mm): Upper 1, lower 0.5 ●Total length (mm): 175 ●Width (mm): 15 ●Thickness (mm): 0.5 Material/Finish: ●Body: SUS420J2
