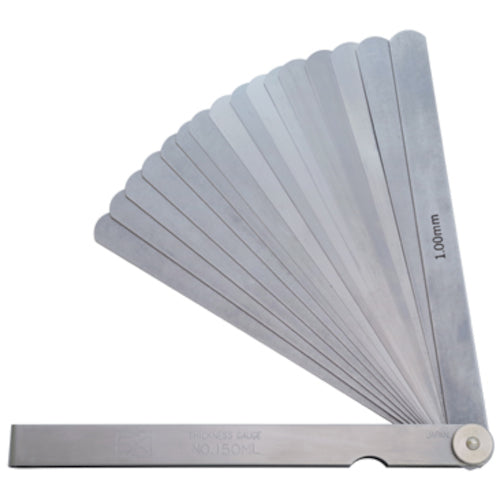

SK Gap Gauge Thickness Gauge 150ML 150mm 19 pieces Thickness 0.01-1.00mm 150ML 1 piece

Catalog number: 150ML Features: ●Since the rust inhibitor does not contain oil, it can be used after lightly wiping it off. ●To guarantee accuracy, each leaf is inspected one by one. ●Multiple leaves can be combined to be used as a gap gauge. ●Accurate inspections can be performed by inserting it into minute gaps between two planes that are difficult to measure with measuring instruments. ●An essential measuring tool for measuring the gaps between pistons and cylinders in automobiles and internal combustion engines. Usage: ● For measuring gaps Specifications: ● Manufacturer code: 110977 ● Leaf width (mm): 12.7 ● Leaf length (mm): 150 ● Leaf thickness (mm): 0.01-1.00 ● Thickness tolerance 0.01-0.06 (mm): ±0.005 ● Thickness tolerance 0.07-0.10 (mm): ±0.01 ● Thickness tolerance 0.11-0.35 (mm): ±0.015 ● Thickness tolerance 0.40-0.60 (mm): ±0.02 ● Thickness tolerance 0.70-3.00 (mm): ±0.035 ● Number of sets (pieces): 19 Material/Finish: ● Leaf: Carbon tool steel Set contents/Accessories: ● 0.01-0.09 (0.01 increments): 9 pieces ● 0.10-1.00 (0.1 increments): 10 pieces Note: ●The white powder on the product is a rust inhibitor. ●The leaf can be removed because the stopper is a screw.
