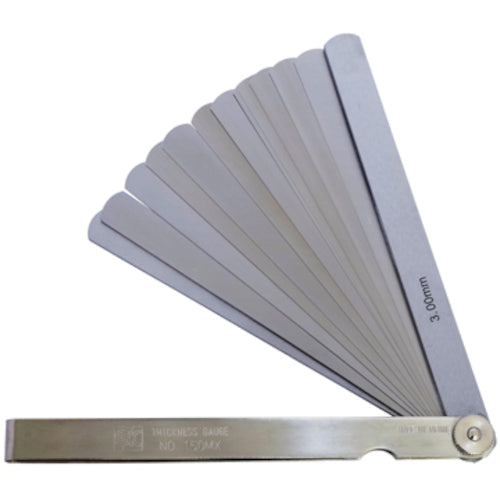

SK Gap Gauge Thickness Gauge 150MX 150mm 13 pieces Thickness 0.03-3.00mm 150MX 1 piece

Catalog number: 150MX Features: ●Since the rust inhibitor does not contain oil, it can be used after lightly wiping it off. ●To guarantee accuracy, each leaf is inspected one by one. ●Multiple leaves can be combined to be used as a gap gauge. ●Accurate inspections can be performed by inserting it into minute gaps between two planes that are difficult to measure with measuring instruments. ●An essential measuring tool for measuring the gaps between pistons and cylinders in automobiles and internal combustion engines. Specifications: ● Leaf width (mm): 12.7 ● Leaf length (mm): 150 ● Leaf thickness (mm): 0.03 to 3.00 ● Thickness tolerance 0.01 to 0.06 (mm): ±0.005 ● Thickness tolerance 0.07 to 0.10 (mm): ±0.01 ● Thickness tolerance 0.11 to 0.35 (mm): ±0.015 ● Thickness tolerance 0.40 to 0.60 (mm): ~ ● Thickness tolerance 0.70 to 3.00 (mm): ±0.035 ● Number of sets (sheets): 13
