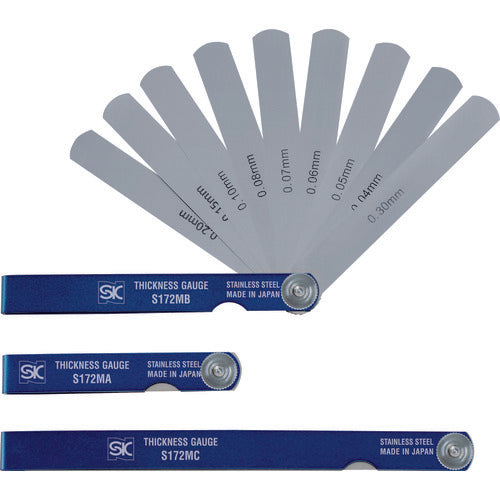

SK Gap Gauge Stainless Steel Thickness Gauge 100mm 9 pieces Thickness 0.04-0.30mm S172MB 1 piece

Catalog number: S172MB Features: ● Uses rust-resistant stainless steel leaf. ● Accurate inspection is possible by inserting into minute gaps between two planes that are difficult to measure with measuring instruments. ● An essential measuring tool for measuring the distance between pistons and cylinders in automobiles and internal combustion engines. Applications: ● For measuring gaps. Specifications: ● Manufacturer code: 110682 ● Leaf shape: A ● Length (mm): 100 ● Number of pieces (pieces): 9 ● Set details (mm): 0.04, 0.05, 0.06, 0.07, 0.08, 0.10, 0.15, 0.20, 0.30 ● Thickness (mm): 0.04, 0.05, 0.06, 0.07, 0.08, 0.10, 0.15, 0.20, 0.3 0●Measurement range (mm): 0.04-0.30●Minimum display (mm): 0.04●Leaf width (mm): 12.7●Leaf length (mm): 100●Leaf thickness (mm): 0.04-0.30●Accuracy 0.04-0.10 (mm): ±0.005●Accuracy 0.15-0.30 (mm): ±0.015●Main parts with eyelet finish (leaf cannot be replaced)●Number of sets (pieces): 9 Material/Finish: ●Stainless steel (SUS304H)
