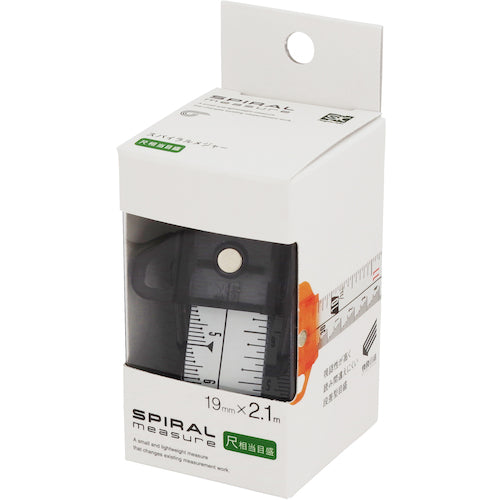

Catalog number: SMT-1920SGY Features: ● The lightest convex scale without the main case. ● Approximately 1/3 the weight compared to conventional convex scales. ● The slider has double-sided magnets and can be attached to steel frames. ● Step-type scale with easy-to-read graduations in 1 minute and 1 mm increments. ● Continuously tracking numbers (scale equivalent to shaku) to prevent misreading. ● Repeating numbers (cm scale) with large, easy-to-read numbers. ● Double-sided scale with horizontal markings on the front and vertical markings on the back. ● Nylon coated tape that is resistant to friction. Uses: ● For measuring dimensions at construction sites and for recording photographs Specifications: ● Tape length (m): 2.1 ● Tape width (mm): 19 ● Scale specifications: Both sides, upper line equivalent to shaku, lower line cm ● 455 pitch display: None ● Color: Gray ● Tape color: White ● Tape size (mm x m): 19 x 2.1 (66/33) ● Length tolerance (mm): ± (0.25 + 0.15L) ● Scale type: Both sides, upper line equivalent to shaku, lower line cm ● Scale pitch (rin, mm): Upper line 5, lower line 1 ● Tape protection: Nylon coating ● 455 pitch: None ● Magnet: Yes ● Number of claw rivets (points): None ● Body color: Gray ● Effective measurement length (m): 2 Materials/Finish: ● Slider: Polycarbonate ● Tape: SK4 ● Magnet: Neodymium magnet Note: ● L = Measurement length in meters (rounded up)
