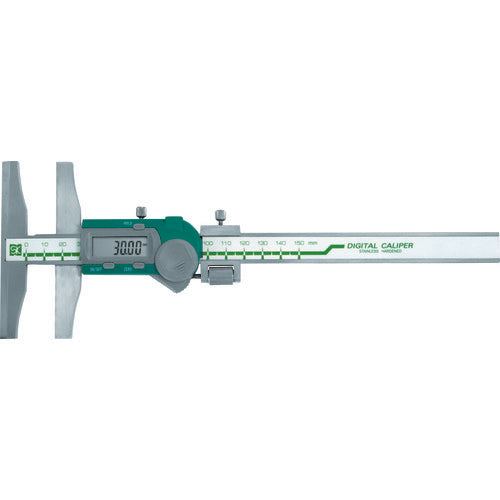

SK Digital Scribing Gauge 150mm GDCS-150ST 1 unit

Catalog number: GDCS-150ST Features: * Compatible with the optional BluetoothBOX (DTW-DG01). * Stable marking work is possible on the base end surface. * Measurement values ​​can be transmitted wirelessly to a PC. * Convenient for high-precision, repeated marking work of a fixed size. * To ensure accuracy, an inspection sheet is included with the values ​​recorded at the time of inspection. * Pencil marking needle is included. * Equipped with a hold function. * Equipped with an auto-off function (approx. 20 minutes). Uses: ● As a marking gauge on the base end surface of the main scale, using the base of the vernier scale as a reference Specifications: ● Manufacturer code: 151995 ● Measurement range (mm): 0-150 ● Minimum display (mm): 0.01 ● Depth bar: None ● Instrument error (mm): ±0.07 ● Power supply: CR2032 (included for testing) ● Power supply (V): CR2032 (included for testing) ● Base dimensions (mm): 100 ● Type: Digital ● With auto-off function (approx. 20 minutes) ● With hold function ● Base parallelism (mm): 0.07 Materials/Finish: ● Body: Stainless steel Set contents/Accessories: ● PC case ● Pencil marking needle SC-P ● CR2032 Note: ● Instrument error does not include quantization error (±1 count).
