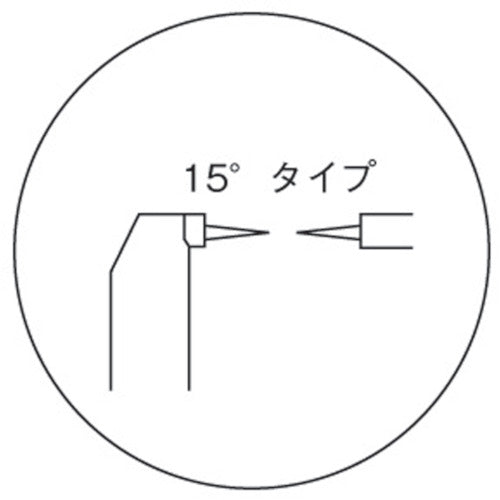

Catalogue number: MC200-25P Features: ● Comes with a heat-resistant cover. ● The measuring surface is fitted with a carbide tip. ● The measuring probe has an acute angle, making it ideal for point measurements. Applications: ● For measuring valley diameters such as the web diameter of a drill. Specifications: ● Manufacturer code: 151431 ● Measurement range (mm): 0-25 ● Maximum allowable error (μm): 4 ● Minimum display (mm): 0.01 ● Measuring surface shape: Point type ● Pressure control device: Ratchet stop ● Tip angle (°): 15° ● Tip taper angle: Approximately 15°
