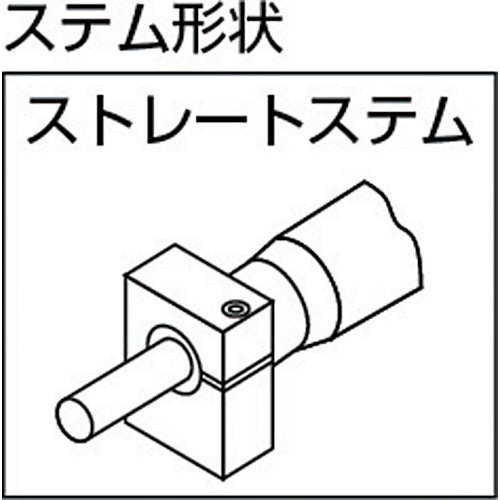

Catalog number: 1709-050 Features: ●Standard, compact, general-purpose type with a measuring range of 0 to 15 mm. ●Used as a fine feed device. ●Comes with a carbide tip. (1709-050) Applications: ●Can be attached to precision instruments and precision machines for measurement, feeding, positioning, etc. Specifications: ●Manufacturer code: 151122 ●Measuring range (mm): 0 to 15 ●Total length (mm): 75.5 ●Minimum display (mm): 0.01 ●Stem shape: Straight with clamp ●Tip shape: Flat ●Maximum allowable error (μm): 4 ●Spindle (mm): Φ6.5 x 17 ●Stem (mm): Φ9.5 x 9.5 ●Thimble diameter (mm): 15 ●Comes with a carbide tip
