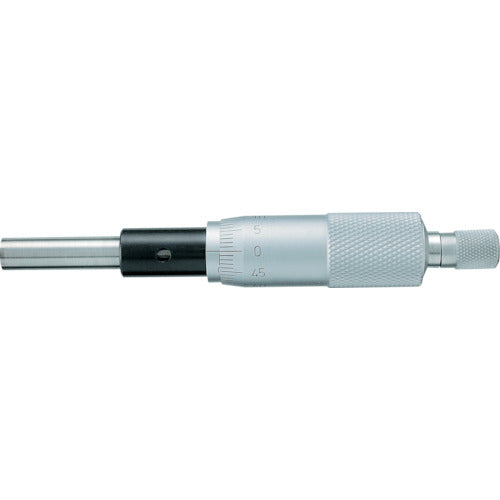

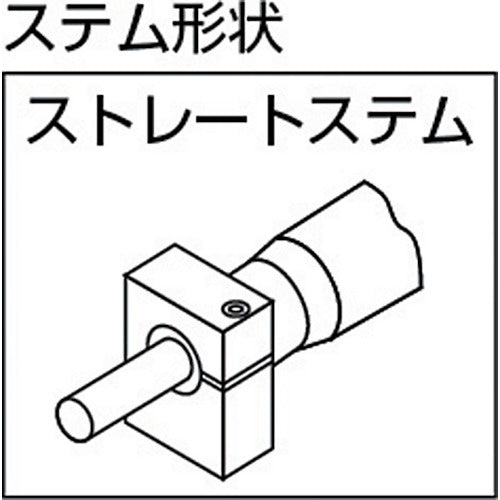

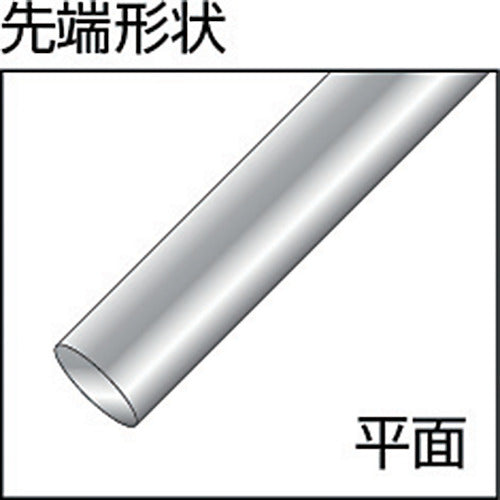

Catalog number: 1603-000 Features: ●Standard type with a measurement range of 0 to 25 mm, general-purpose. ●Comes with a carbide tip. ●Used as a fine feed device. Applications: ●Attached to precision instruments and precision machines for measurement, feeding, positioning, etc. Specifications: ●Manufacturer code: 151128 ●Measurement range (mm): 0 to 25 ●Total length (mm): 118 ●Minimum display (mm): 0.01 ●Stem shape: Straight ●Tip shape: Flat ●Maximum allowable error (μm): 3 ●Constant pressure device: Included ●Spindle (mm): Φ8 x 28.5 ●Stem (mm): Φ12 x 20.5 ●Thimble diameter (mm): 18
