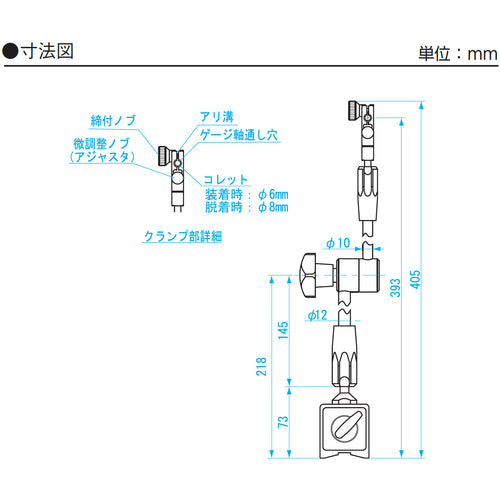

Catalog number: SB-100G Features: *Joints can be locked simultaneously by tightening the mechanical lock knob. *Magnets can be turned on/off by operating the lever. *Dovetail mounting is possible. *For those who require a smaller size, we recommend MB-7. Specifications: *Base dimensions (mm): 50x75x55 *Surface magnetic flux density (mT): Maximum 100 *Adhesive force (N): 1000 *Stem mounting (mm): φ6, φ8 *Lug hole mounting (mm): - *Main pillar mounting screw: M8xP1.25 *Dovetail: Possible
