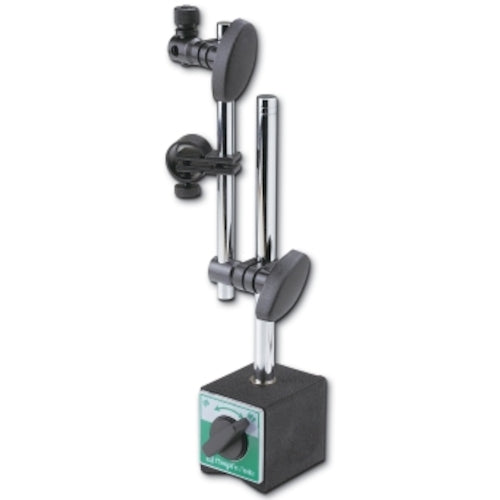

SK Magnetic Base with Micro Adjustment SB-6B 1 pc

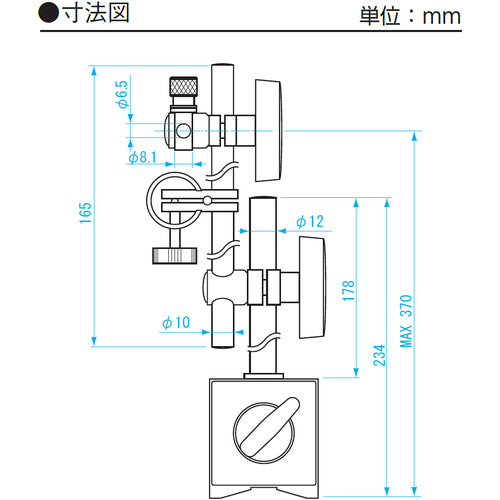

Catalogue number: SB-6B Features: ● Micro-motion type (micro-motion range 2mm) that allows easy positioning of dial gauges and indicators. ● Ideal for mounting measuring instruments and eccentricity inspections. ● Magnet can be turned on/off by operating the lever. ● Also compatible with dial gauges with lugs. ● For those requiring a smaller size, we recommend B-4. Specifications: ● Base dimensions (mm): 50x60x55 ● Surface magnetic flux density (mT): Maximum 100 ● Adhesive force (N): 800 ● Stem mounting (mm): φ6, φ8 ● Lug hole mounting (mm): φ6.5, φ8 ● Main column mounting screw: M8xP1.25 ● Dovetail groove: Not available
