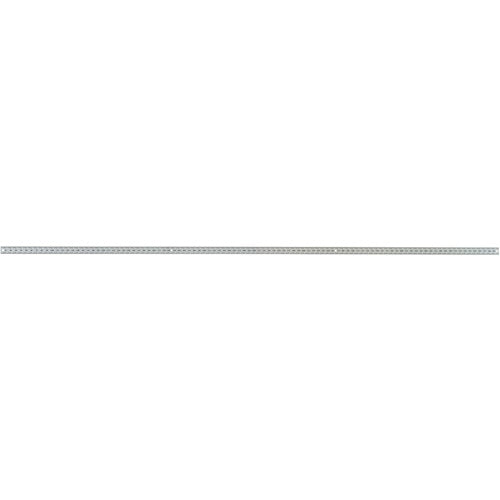

SK Machine Scale, Quick Step Scale, Left Base Point, 1000mm, MSL-1000KD, 1 Piece

Catalog number: MSL-1000KD Features: ●Easy-to-read stepped graduations. ●Thin, narrow scale that can be attached to machines and jigs. ●Left-side base graduations. ●Comes with mounting holes. ●Made of rust-resistant stainless steel. ●The scale surface has a silver finish that makes the graduations clearly visible. Applications: ●For dimensional measurements. Specifications: ●Total length (mm): 1000 ●Width (mm): 15 ●Measuring range (mm): 0-1000 ●Length tolerance (mm): ±0.30 ●Scale type: Upper and lower cm graduations ●Scale pitch (mm): Upper and lower 1 ●Thickness (mm): 0.5 Material/Finish: ●Body: SUS420J2
