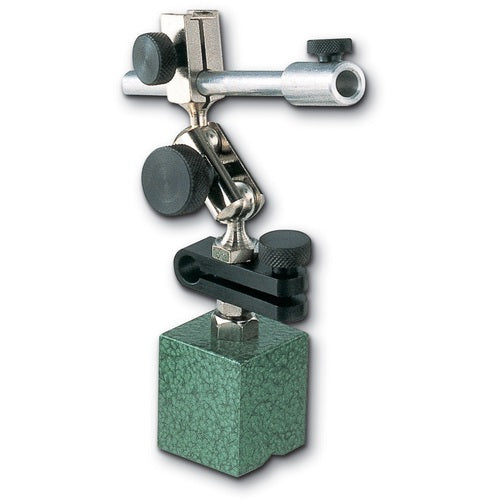

SK Mini Magnetic Base (pillar type, with micro-adjustment) B-3 1 piece

Catalogue number: B-3 Features: ● Convenient for mounting directly on narrow spaces and machines. ● Fine adjustment type for easy positioning. ● Uses Alnico magnets, high temperature resistance and excellent mechanical strength. Applications: ● As a holder for dial indicators. Specifications: ● Adhesive force (N): 65 ● Magnet width (mm): 25 ● Magnet depth (mm): 25 ● Magnet height (mm): 30 ● Total height (mm): 190 ● Post dimensions (mm): 6mm ● Main post mounting screw: M5 x P0.8 ● Measuring instrument mounting hole: 6mm, dovetail ● Main post: 83mm ● Post: 89mm ● Measuring instrument mounting: 6mm hole, with dovetail ● Fine adjustment range (mm): 0.5
