新潟精機(株)

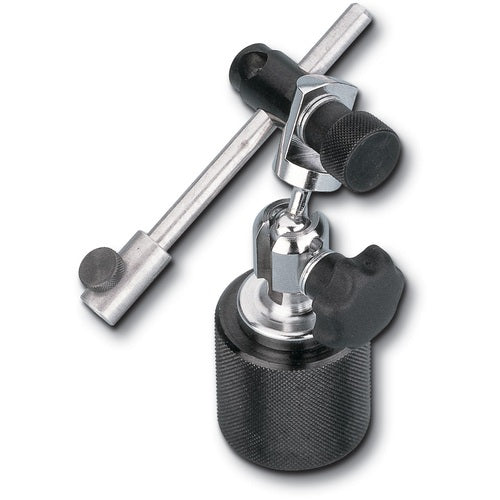

SK Mini Magnet Base (Support Type) B-5 1 piece
SK Mini Magnet Base (Support Type) B-5 1 piece
Regular price
¥9,240
Regular price
Sale price
¥9,240
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Catalogue number: B-5 Features: ● Convenient for mounting directly on machines and in tight spaces. ● Dial gauges with lugs can be attached. ● High adhesive power due to the use of samarium-cobalt magnets. Applications: ● As a holder for dial gauges and dial indicators. Specifications: ● Adhesive power (N): 200 ● Magnet width (mm): 35 ● Magnet depth (mm): 35 ● Magnet height (mm): 32 ● Total height (mm): 175 ● Post dimensions (mm): 6mm ● Main post mounting screw: M5 x P0.8 ● Measuring instrument mounting hole: 6mm, 8mm ● Main post: 56mm ● Post: 89mm ● Measuring instrument mounting: 6mm, 8mm hole
