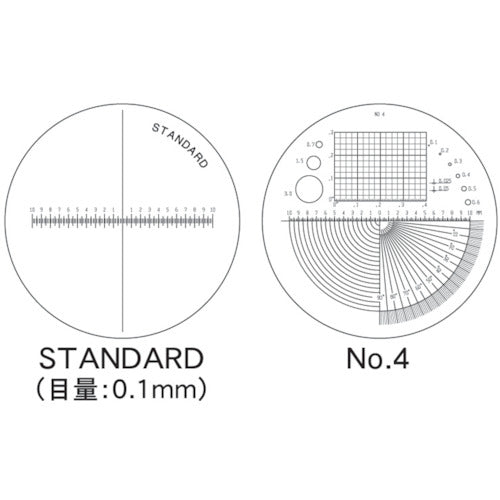

Catalog number: LSL-26 Features: ● Comes with an LED light, so it can be used in dark places. ● You can change the illuminance of the light by turning it on and off. ● Comes with two scales (one already installed). ● Comes with a special case, so it is easy to carry. Applications: ● Surface shape inspection. ● For precision work. Specifications: ● Magnification (times): 10 ● Lens dimensions (mm): φ16.5 ● Measurement range (mm): 20 ● Minimum scale (mm): 0.1 ● Outer diameter (mm): 30.6 ● Total height (mm): 55.5 ● Width (mm): 51.5 ● Effective diameter (mm): 16.5 ● Power supply: 3 button-type alkaline batteries (LR41) (sold separately) ● Comes with two special scales (one already installed) ● Scale plate diameter (mm): 26 ● Field of view (mm): 24 ● Clear case diameter: 30.6mm ● Lens material: Glass Material/Finish: ● Lens: Glass
