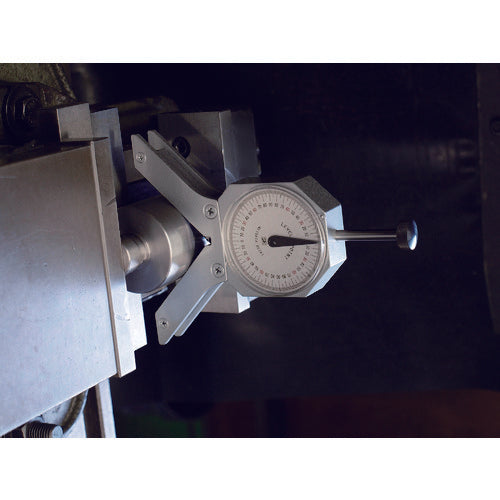

Catalog number: LP-360 Features: ● Can measure angles and punch simultaneously. ● Can be used upside down as it has magnets on the legs. ● Can read angles directly with one touch. ● Can measure any angle quickly and accurately from horizontal to vertical. Applications: ● Incline angle measurement and punching. Specifications: ● Measurement range (°): 0-360 ● Width (mm): 125 ● Depth (mm): 25.5 ● Height (mm): 130 ● Minimum display: 1° ● Reading accuracy: Within ±1° ● V-base compatible diameter: 20-100mm Material/Finish: ● Body: Aluminum ● Legs: Steel ● Tip: Carbide tip
