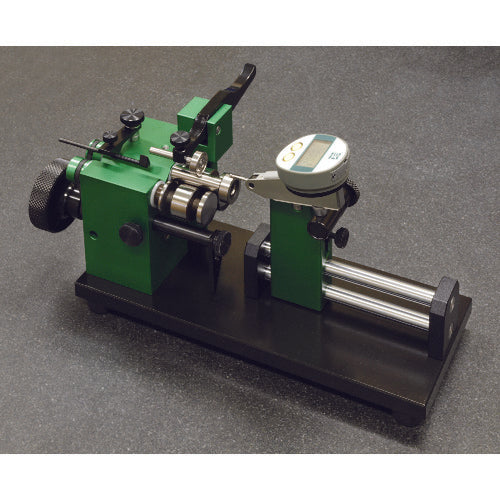

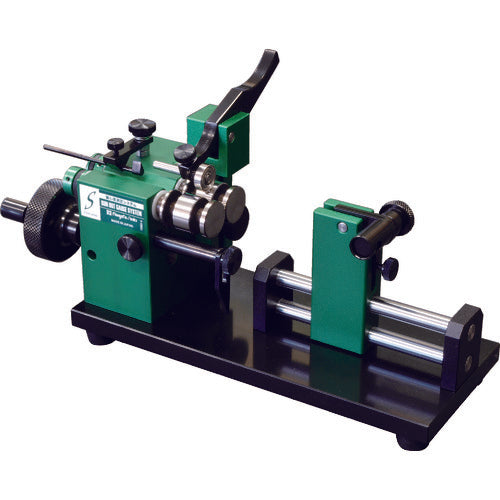

SK Eccentricity Measurement System Runout Measurement Target Workpiece Φ4 to Φ30 Short Base/Slit Roller/Shaft Carrier ROG-221SS 1 Unit

Catalog number: ROG-221SS Features: ● Achieves maximum accuracy of 2μm (when measuring a φ20mm workpiece), enabling high-level precision measurements. ● Measurements are performed with smooth rotation thanks to a timing belt + pulley drive system and a handle with grip. ● Equipped with a work stopper that holds the front and rear of the workpiece, allowing measurement of axial circumferential runout. ● Free movement in the Z direction is possible, supporting measurement at the optimal position. ● A carrier with angle micro-adjustment makes it easy to set the measuring instrument to 0. Applications: ● Attach your own indicator to measure eccentricity. Specifications: Width (mm): 134 Depth (mm): 296 Height (mm): 140-170 Total length (mm): 296 Base type: Short base Roller type: Slit roller Carrier type: Shaft carrier Precision: Within 2-3.5μm Measurable workpiece conditions: Outer diameter φ4-30mm/Length 5-80mm/Cylindrical shape/The reference part must be long enough to be clamped by the rollers Material/Finish: Base: Carbon steel Roller: Tool steel Note: Indicator not included. If the tip of the workpiece moves away from the end face of the main roller, the vibration will increase, which will cause measurement errors.
