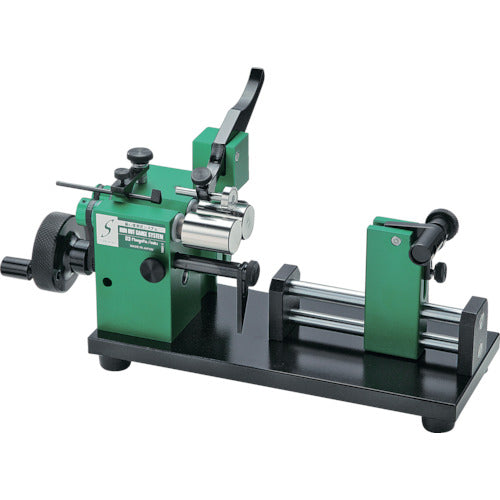

SK Eccentricity Measurement System Runout Measurement Target Workpiece Φ4 to Φ30 Short Base/Flat Roller/Shaft Carrier ROG-223SS 1 pc

Catalog number: ROG-223SS Features: ●Achieves a maximum accuracy of 2 μm, allowing for high-level precision measurement. ●Measurements are performed with smooth rotation thanks to the timing belt + pulley drive system and grip handle. ●Carrier with angle micro-adjustment that makes it easy to set the measuring instrument to 0. ●Free movement in the Z direction is possible, supporting measurement at the optimal position. ●Equipped with a work stopper that holds the front and back of the workpiece, allowing for measurement of axial circumferential runout. Applications: ●Attach your own indicator to measure eccentricity. Specifications: ●Width (mm): 134 ●Depth (mm): 296 ●Height (mm): 140-172 ●Total length (mm): 296 ●Base type: Short base ●Roller type: Flat roller ●Carrier type: Shaft carrier ●Accuracy: Within 2-3.5 μm ●Measurable workpiece conditions: Outer diameter φ4-30 mm / Length 5-80 mm / Cylindrical shape / The part to be used as the reference must be long enough to be clamped by the rollers Material/Finish: ●Base: Carbon steel ●Roller: Tool steel
