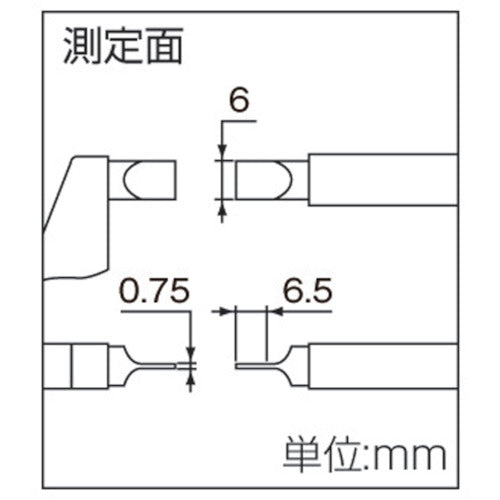

Catalogue number: MC201-50BA Features: ●The measuring surface is a blade type, making it easy to measure the groove diameter of round objects. ●Comes with a heat-resistant cover. ●The frame has a painted finish. ●Comes with a constant pressure device. Applications: ●For measuring the diameter of fine grooves on round objects. Specifications: ●Manufacturer code: 151472 ●Measuring range (mm): 25-50 ●Maximum permissible error (μm): 4 ●Minimum display (mm): 0.01 ●Measuring surface shape: Blade type ●Constant pressure device: Ratchet stop ●Blade thickness (mm): 0.75 ●Feed mechanism: Straight spindle type ●Minimum display (mm): 0.01 Materials/Finish: ●Frame: Spheroidal graphite cast iron ●Spindle: High carbon chromium bearing steel
