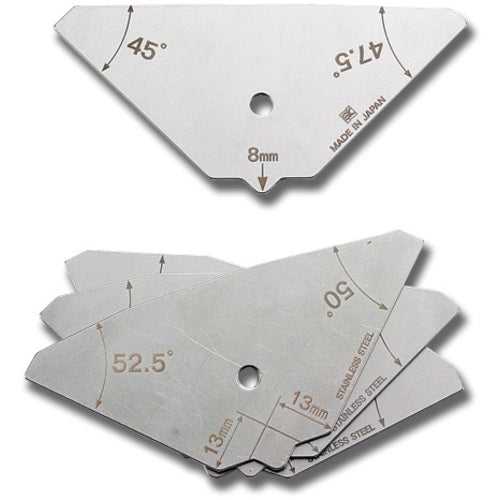

SK Angle Limit Gauge, Set of 4, Measurement Range 45-62.5° (0.25° increments) WAL4562 1 piece

Catalog number: WAL4562 Features: ●Limit gauge for measuring joint groove angle and butt joint groove angle. ●Set of 4 gauge leaves. ●Displays limit dimension value for easy pass/fail judgment. ●Leg length displays allowable limit dimension at throat thickness measurement. Applications: ●For measuring joint groove angle and butt joint groove angle. ●For measuring T joint groove angle (inside), butt joint groove angle (inside angle), fillet leg length (height), and throat thickness. Specifications: ●Measurable angle (°): 45-62.5 (2.5° pitch) ●Measurable throat thickness (mm): 8, 9, 10, 11 ●Measurable leg length (mm): 11, 13, 14, 15 ●Instrument error: ±0.1mm (length), ±1° (angle) Material/Finish: ●Stainless steel
