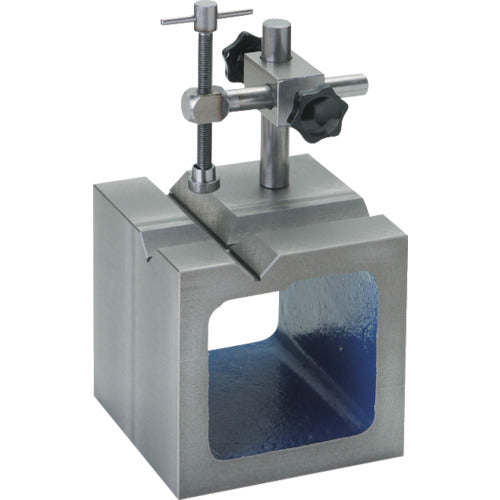

SK Cast Iron V-Grooved Square Block 200mm SBV-200T 1 unit

Catalog number: SBV-200T Features: ●Ideal as a holding device during marking and other processing. ●Comes with a clamp. ●Machine finished. Applications: ●As a holding device. Specifications: ●Width (mm): 200 ●Depth (mm): 200 ●Height (mm): 200 ●Parallelism of bottom surface and V-groove (μm): 100 ●Squareness and parallelism of bottom surface and V-groove parallel surface (mm): 0.07 ●Finish: Machine finish ●Clamp mounting screw: M12 x 1.75 ●Machine finish ●V-groove angle: 90° Material/Finish: ●Cast iron Note: ●Accuracy of the opening end face on the side is not guaranteed.
