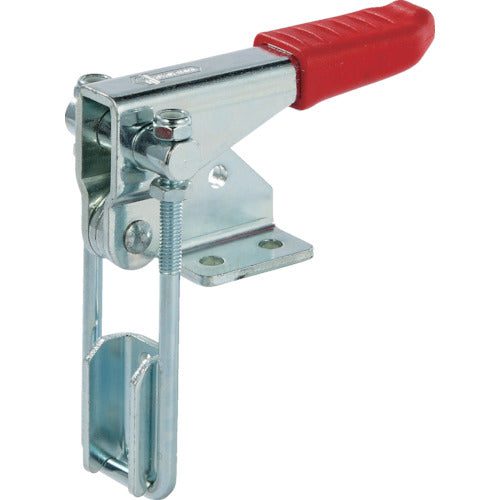

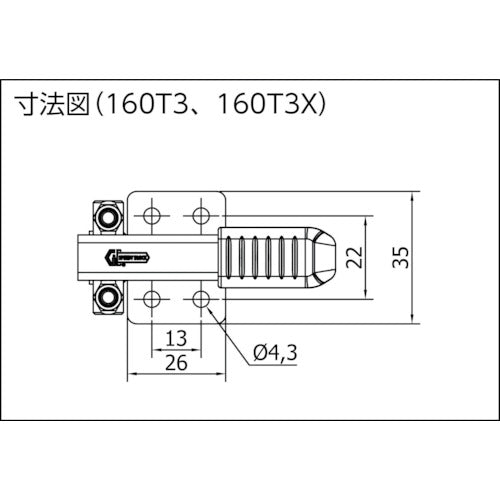

Catalogue number: 160T3 Features: ● The mounting surface is perpendicular to the direction of force application. ● When clamped, the handle is parallel to the mounting surface. Applications: ● For welding jigs. For fixing workpieces. For machining jigs. Specifications: ● Overall length (mm): 68 ● Pull force (kN): 1.6 ● Stroke (mm): 34.5 ● Mounting method: Hole diameter: 4.3 ● Specially designed for lifting Materials/Finish: ● Zinc-plated steel Set contents/Accessories: ● Hook plate
