SPEEDY BLOCK社
SPEEDY B Speedy Block Heavy Load Vertical Type LLE01 LLE01 1 pc
SPEEDY B Speedy Block Heavy Load Vertical Type LLE01 LLE01 1 pc
Regular price
¥15,865
Regular price
Sale price
¥15,865
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability

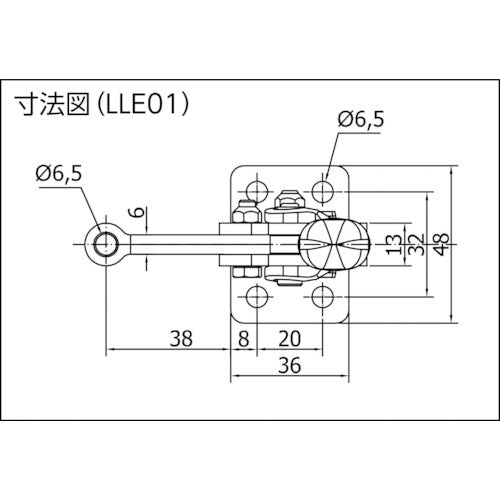

Catalogue number: LLE01 Features: ● Clamp arm and handle are forged. ● Passed tests of over 1 million cycles. Applications: ● For welding jigs. For fixing workpieces. For machining jigs. For die clamping. Woodworking Specifications: ● Overall length (mm): 86 ● Clamping pressure (kN): 2.2 ● Arm angle (°): 100 ● Installation method: Hole diameter: 6.5 ● Suitable contact bolt diameter: M6 ● Downward pressing type ● Vertical handle ● Flange base ● Clamp arm flat type (M6) Material/Finish: ● Blackened steel Set contents/Accessories: ● Bolt retainer Note: ● Contact bolts are sold separately.
