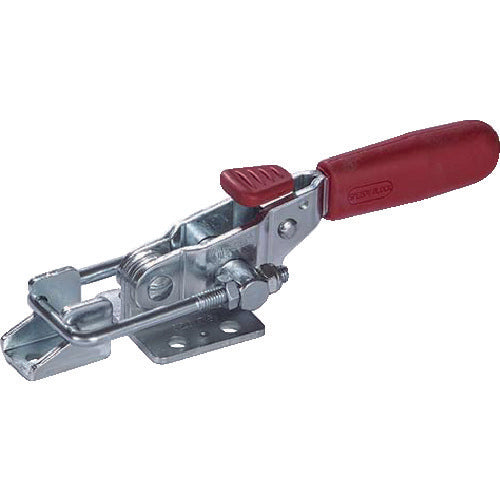

SPEEDY B Toggle Clamp Speedy Block Pull Type Stainless Steel 320T16 320T16 1 pc

Catalogue number: 320T16 Features: ● Equipped with a safety latch to prevent the clamp from being released due to vibration, etc. ● The mounting surface is parallel to the direction in which force is applied. ● The handle is parallel to the mounting surface. Applications: ● For welding jigs. For fixing workpieces. For machining jigs. Specifications: ● Overall length (mm): 169 ● Pull force (kN): 3.2 ● Stroke (mm): 44 ● Mounting method: Hole diameter: 6.5 ● Special type for holding back Material/Finish: ● Stainless steel (SUS304) Set contents/Accessories: ● Hook plate
