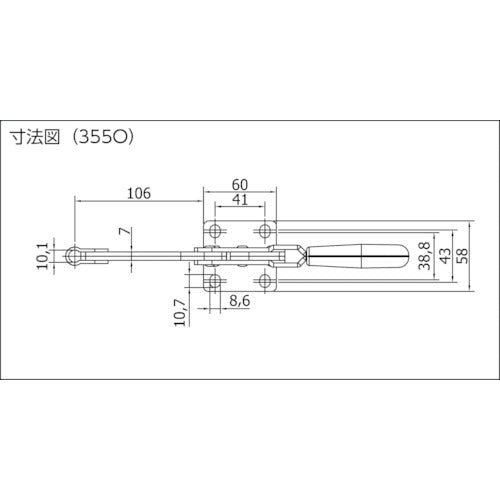

SPEEDY B Toggle Clamp Speedy Block Vertical Type 355O 355O 1 pc

Catalog number: 355O Features: ●Low overall height, so it does not get in the way when installed. ●During clamping operation, the clamp arm is guided vertically, so it is stable against lateral forces. Applications: ●For welding jigs. For fixing workpieces. For processing jigs. Specifications: ●Total length (mm): 271 ●Tightening force (kN): 1.8 ●Arm angle (°): 90 ●Installation method: Hole diameter: 8.5 ●Compatible contact bolt diameter: M10 ●Horizontal handle ●Flange base ●Clamp arm flat type (M10) Material/Finish: ●Zinc-plated steel Set contents/Accessories: ●Bolt retainer Note: ●Contact bolts are sold separately.
